Description
- Hign-concerned Chemical: None
- Size: 26inch
- Mounting Position: Front Drive
- Design: Brushless
- Wattage: > 1000w
- Voltage: 48V
- Brand Name: Jueshuai
- Origin: Mainland China
- ebike kit conversion kit: no battery

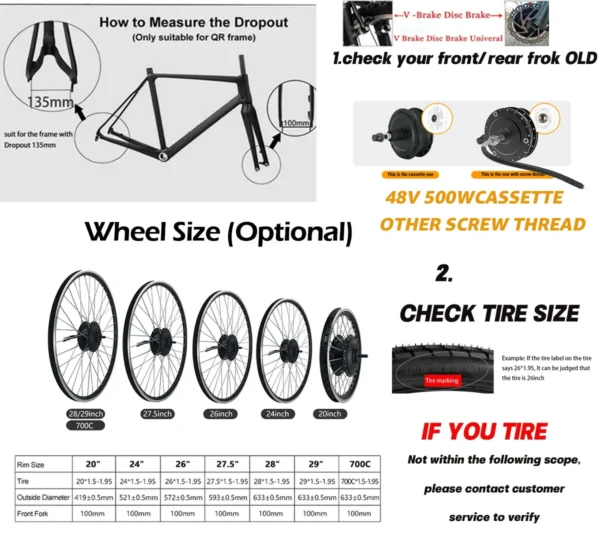

- ebike conversion kit size: 20 24 26 27.5 700c 29 inch

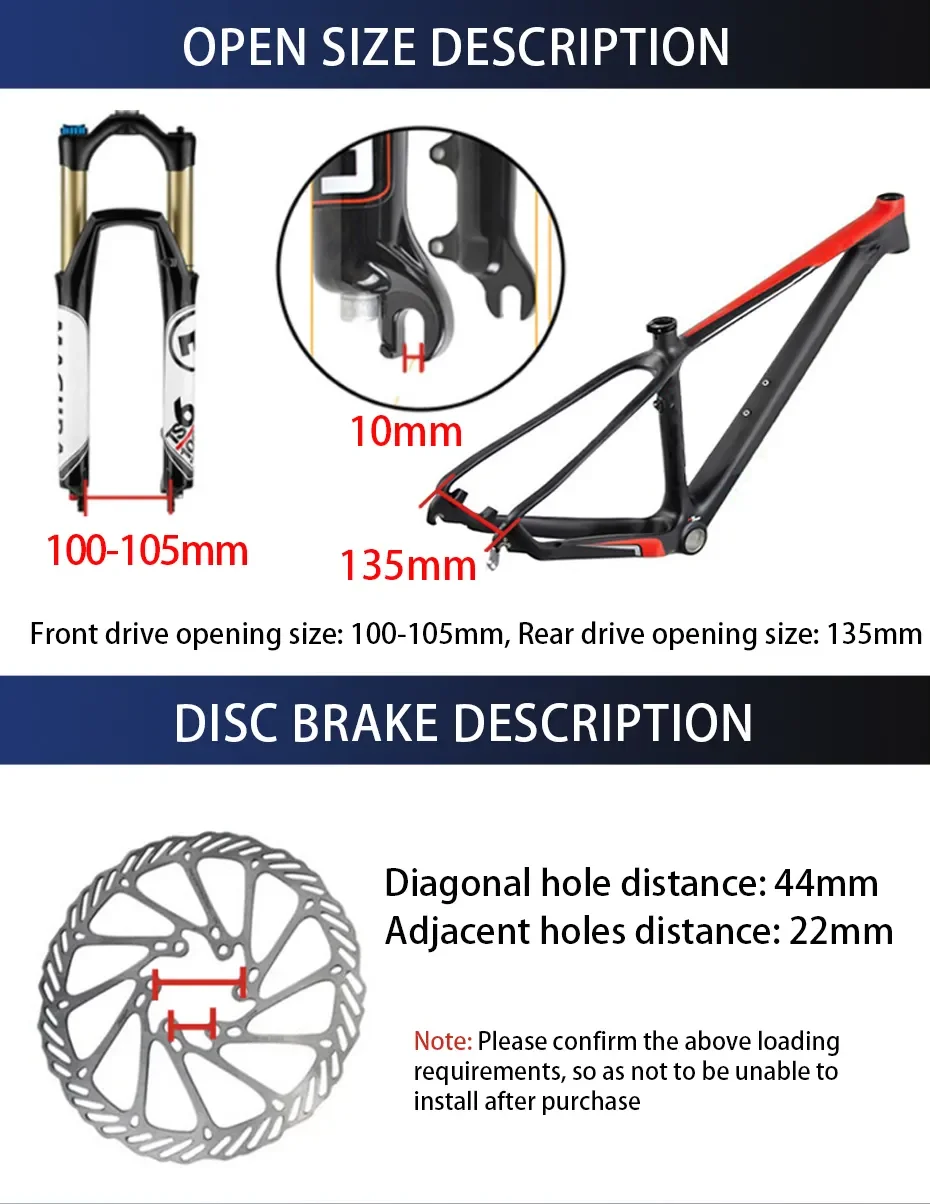

- ebike conversion kit front dropout: 100mm
- ebike conversion kit rear dropout: 135mm
- ebike kit conversion kit type 1: 48v 1500w 2000w brushless gearless

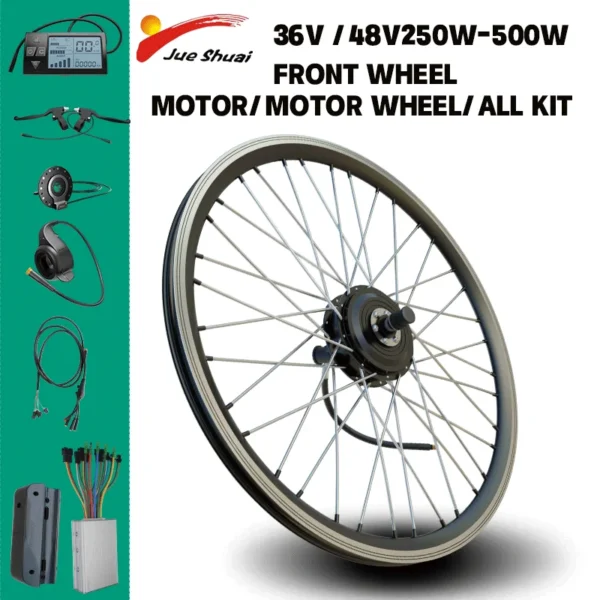

- ebike kit conversion kit type 2: 36v/48v 250w 350w 500w brushless geared
Description:
1.1electric bike conversion Kit, fit for 20"-29" wheel and 100 mm front dropout spacing, and rear dropout spacing with a speed of 25km/h-50km/h, make your bicycle an electric power moped, brushless hub motor for noiseless running, to fully enjoy the pleasure of riding.Super high cost performance, efficiency ≥80%;
2. LED or LCD display for you to choose. LCD for Data Display – Shows battery condition, speed, distance, PAS, trip time and error codes for troubleshooting, also cruise and assist promotion function can be turned on by operating the LCD display.1500W and 2000W usd LCDS900
3. Pedal Assist Sensor – To sense your pedal cadence and accordingly adjust motor turning rate, get power assistant without using throttle, great for a long-distance journey, avoid wrist pain from keep pressing Durable Frame – Aluminum alloy frame for durability and stability.
4. Convenient to Use – Twist Throttle makes speed control as a breeze Hand brakes shut off the motor automatically to save energy and improve safety. Environmental Protection – Powered by battery, without carbon dioxide emissions.
5.NO BATTERY ,NO TIRE ,If you need ,you can contact us to buy .

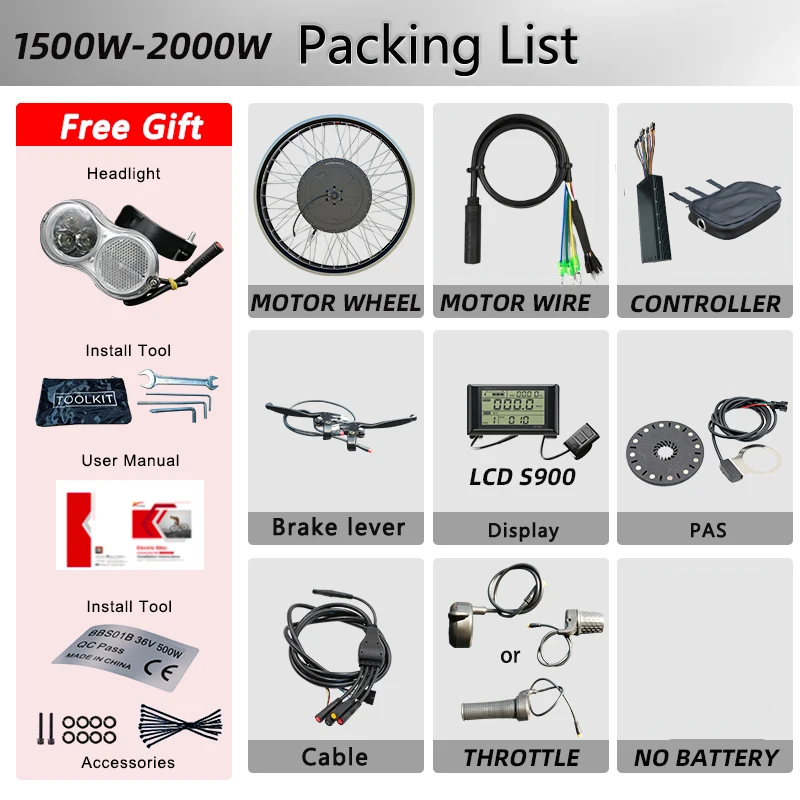

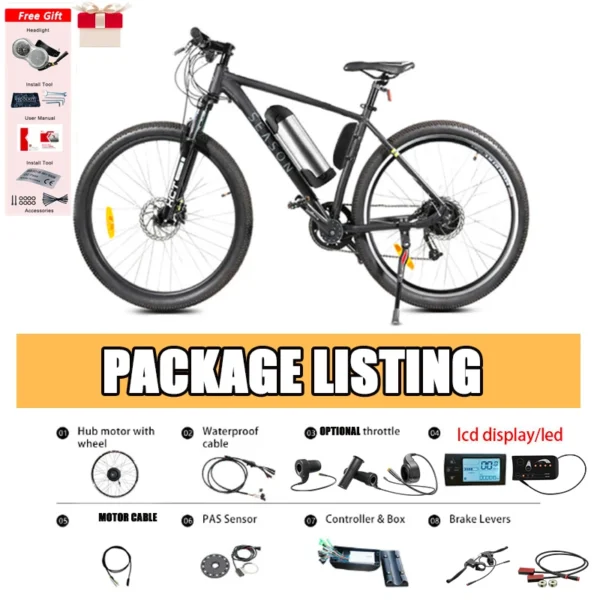

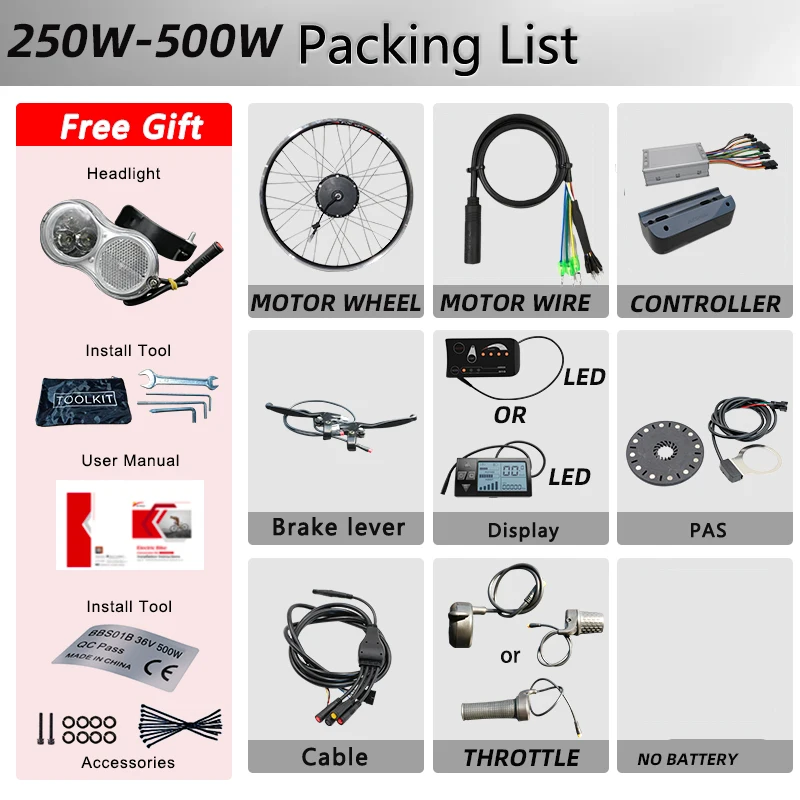

Package Content:
1x Front/ Rear Wheel Hub Motor
1x Electric Controller
1x Controller Box(250w-500w)Bag（1000w-2000w）

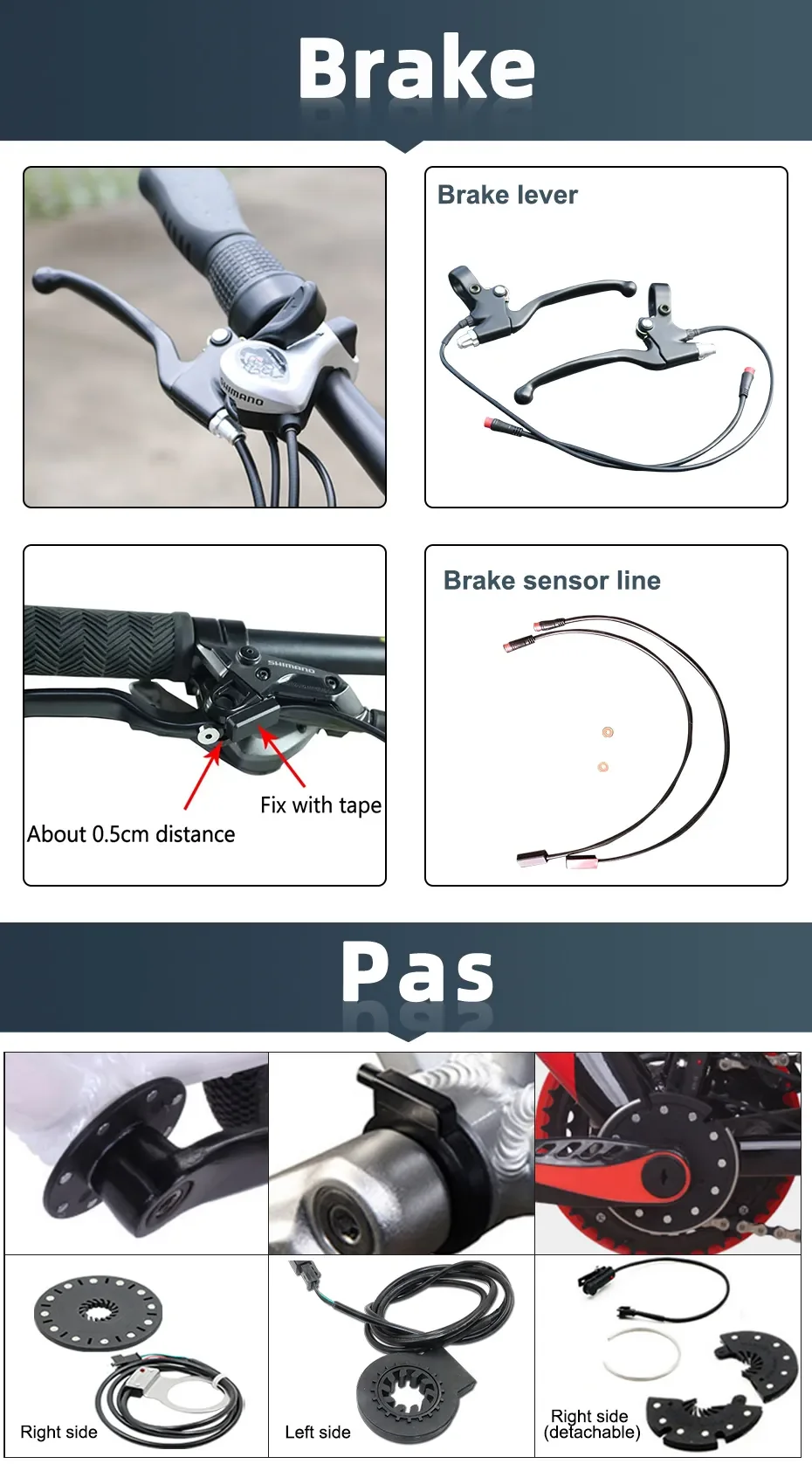

2x Brake lever / brake sensor WIRE (OPTIONAL)
1x Thumb/ Full Twist / Half Twist (OPTIONAL)
1xLED/ LCD/SW900 Display
1x 12 MANAGET Pedal Assist Sensor
1x Waterproof Main Cable
1X9 PIN Motor Cable
1x Manual
GIFT :
1x Headlight
1X TOOL KIT
1x Cable Tie
Kindly leave us order message in this format after you place an order:
1. Throttle: thumb/half throttle/twist
2. Brake lever/ brake sensor
3.LCD/ LED
If you do not leave the message to us, we will choose brake lever and thumb throttle for you. Thanks!
* This rear motor can fit 6 speed and 7 speed freewheel, (ONLY 1000-2000W Has freewheel)

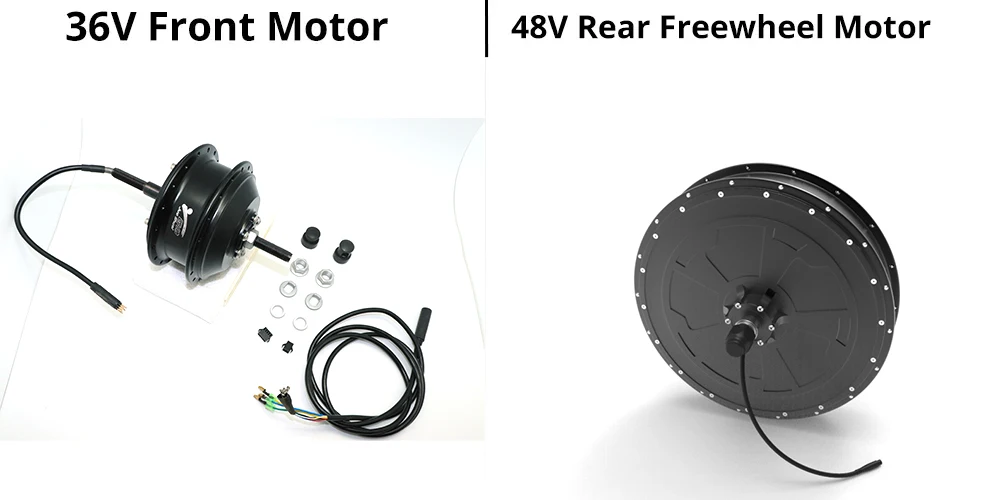

About Motor
Specification of 250/350wW Motor
Construction: Gear
Weight(Kg): 5.6
Reduction Ratio: 1: 5

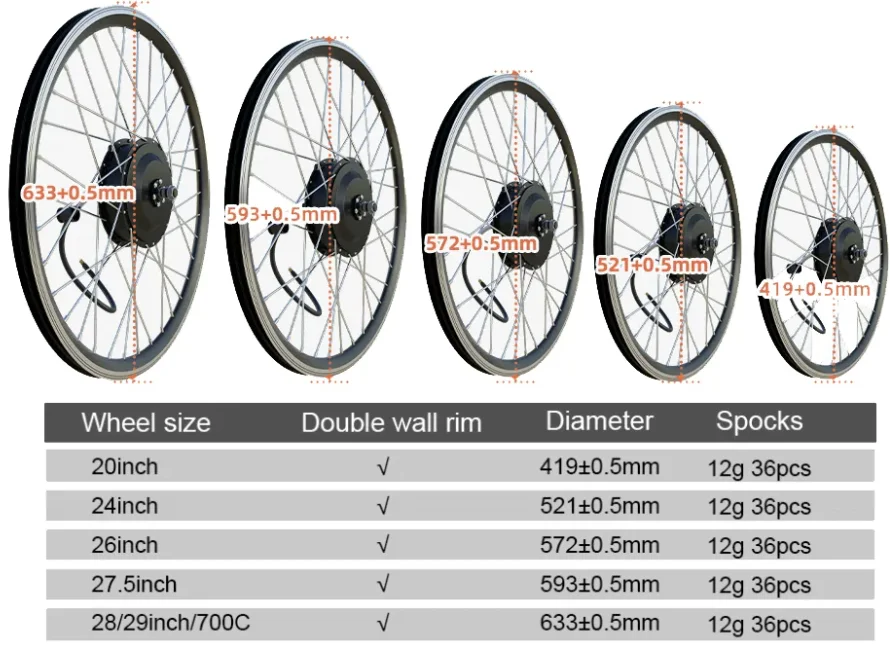

Wheel Diameter(Inch): 20-29
Rated Speed(km/h): 30-38
RPM: 285-320
Torque(N.m): 30-35
Magnet Poles(2P): 10
Front Dropout Size(MM): 100
Rear Dropout Size(MM): 135
Brake Type: V/Disc brake
Operating Temperature(°C): -20-45
Efficiency(%): > 80%
Color: Black
Cabling Route: Shaft center right
Noise Grade(DB): <55
IP Grade: IP54
Rim: Double Layers
Connector: hall sensor compatible
Speed Detection Signal(Pulses/Cycle): 1
Certifications: ROHS/CE
Spoke Specification:
36H*12G
Specification of 500W Motor
Rear 36/48V 500W Wheel
Construction: Gear
Weight(Kg): 5.6
Reduction Ratio: 1: 5
Wheel Diameter(Inch): 20-29
Rated Speed(km/h): 35-45
RPM: 320-360
Torque(N.m): 40-45
Magnet Poles(2P): 10
Front Dropout Size(MM): 100
Rear Dropout Size(MM): 135
Brake Type: V/Disc brake
Operating Temperature(°C): -20-45
Efficiency(%): > 80%
Color: Black
Cabling Route: Shaft center right
Noise Grade(DB): <55
IP Grade: IP54
Rim: Double Layers
Connector: hall sensor compatible
Speed Detection Signal(Pulses/Cycle):1
Certifications: ROHS/CE
Spoke Specification:
36H*12G
Specification of 1500W Motor
Rear 48V 1500W Wheel
Construction: Gearless
Rated Voltage(V): 48
Weight(Kg): 8.5
Wheel Diameter(Inch): 24-29
Rated Speed(km/h): 45-55
RPM: 414-487
Torque(N.m): 71-74.6
Magnet Poles(2P): 23
Rear Dropout Size): 135mm
Brake Type: V/Disc brake
Operating Temperature(°C): -20-45
Efficiency(%): > 80%
Color: Black
Cabling Route: Shaft center right
Noise Grade(DB): <55
IP Grade: IP54
Connector: hall sensor compatible
Speed Detection Signal(Pulses/Cycle): 1
Certifications: ROHS/CE
Spoke Specification: 36H*12/13G
Specification of 2000W Motor
Construction: Gearless
Rated Voltage(V): 48
Weight(Kg): 9.1
Wheel Diameter(Inch): 24-29
Rated Speed(km/h): 50-60
RPM: 442-557
Torque(N.m): 91-94.6
Magnet Poles(2P): 23
Rear Dropout Size): 135mm
Brake Type: V/Disc brake
Operating Temperature(°C): -20-45
Efficiency(%): > 80%
Color: Black
Cabling Route: Shaft center right
Noise Grade(DB): <55
IP Grade: IP54
Connector: hall sensor compatible
Speed Detection Signal(Pulses/Cycle): 1
Certifications: ROHS/CE
Spoke Specification: 36H*12G
1.CONTROLLER
48V 20AH LCD | 48V40AHLCD |
Cable length :About 10-13cm | Cable length :About 10-13cm |
Size :105*65*32 mm | Size :220*83*35 mm |
Maximum current :20 | Size :220*83*35mm |
Weight :200g | Weight :200g |
Rated power：500W | Rated power：1500-2000W |
Rated voltage :DC 36V | Rated voltage :DC48V |
Brake input :Low-Level | Brake input :Low-Level |
Low Voltage protection:39±0.5 | Low Voltage protection:29±0.5 |
36V 20AH LCD |
Cable length :About 10-13cm |
Size :105*65*32 mm |
Maximum current :20 |
Weight :200g |
Rated power：500W |
Rated voltage :DC 36V |
Brake input :Low-Level |
Low Voltage protection:29±05 |

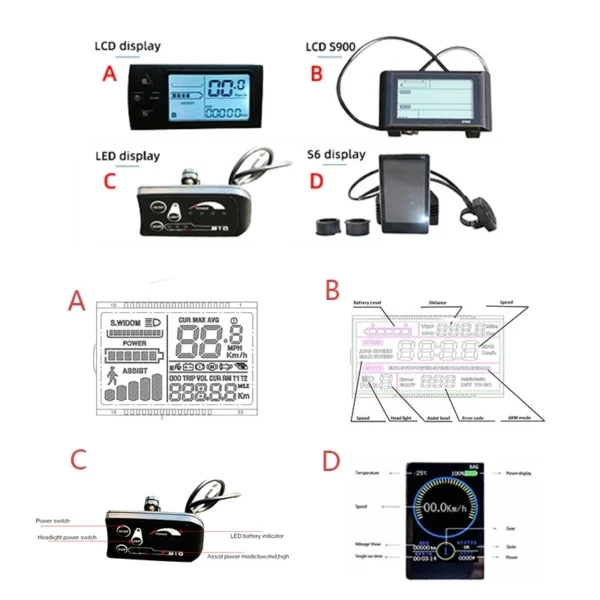

3.(1)LED DISPLAY
Function:Power switch control (power door lock function)
Power level display
Third-gear power strength control
Headlamp switch control
(2). LCD Display

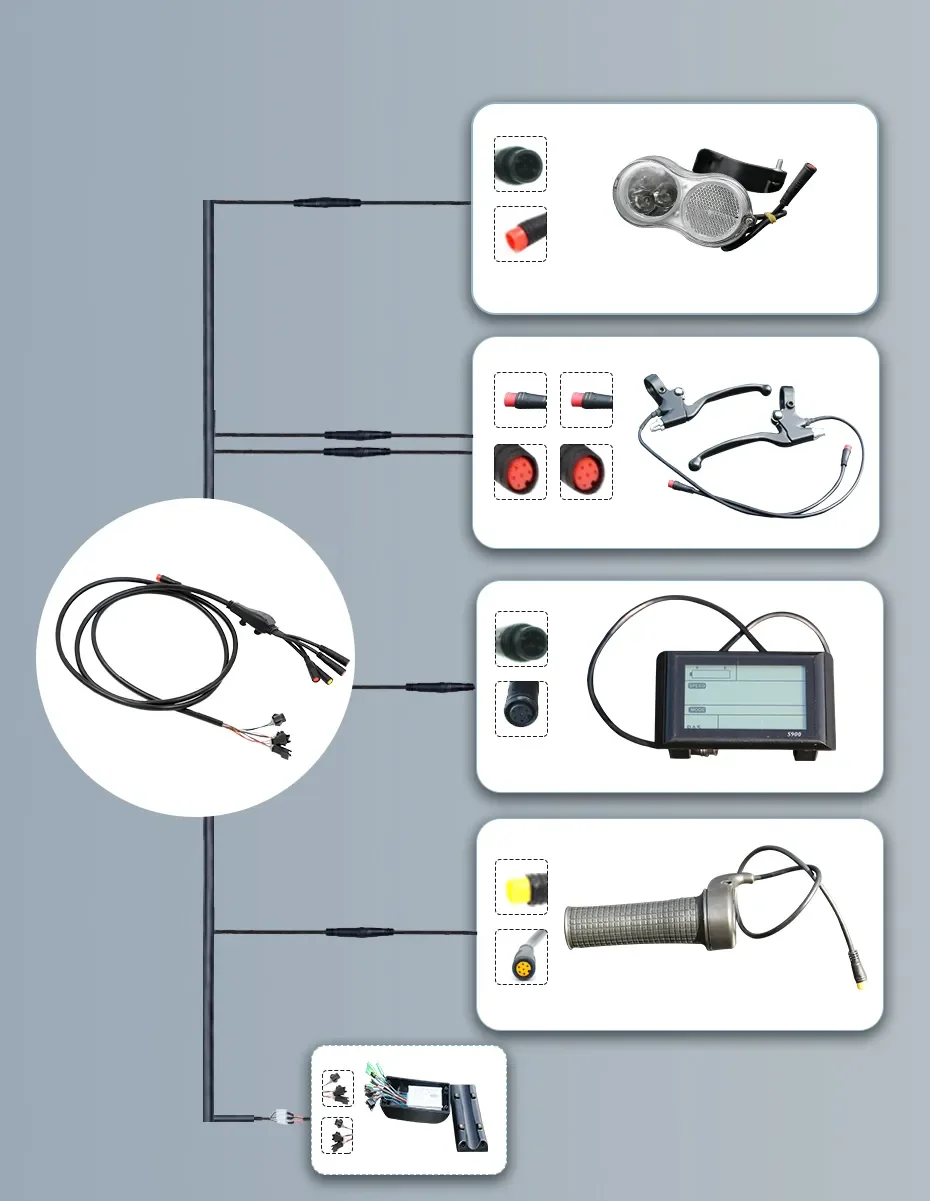

Main Cable Electric Bike Connector :5in 1

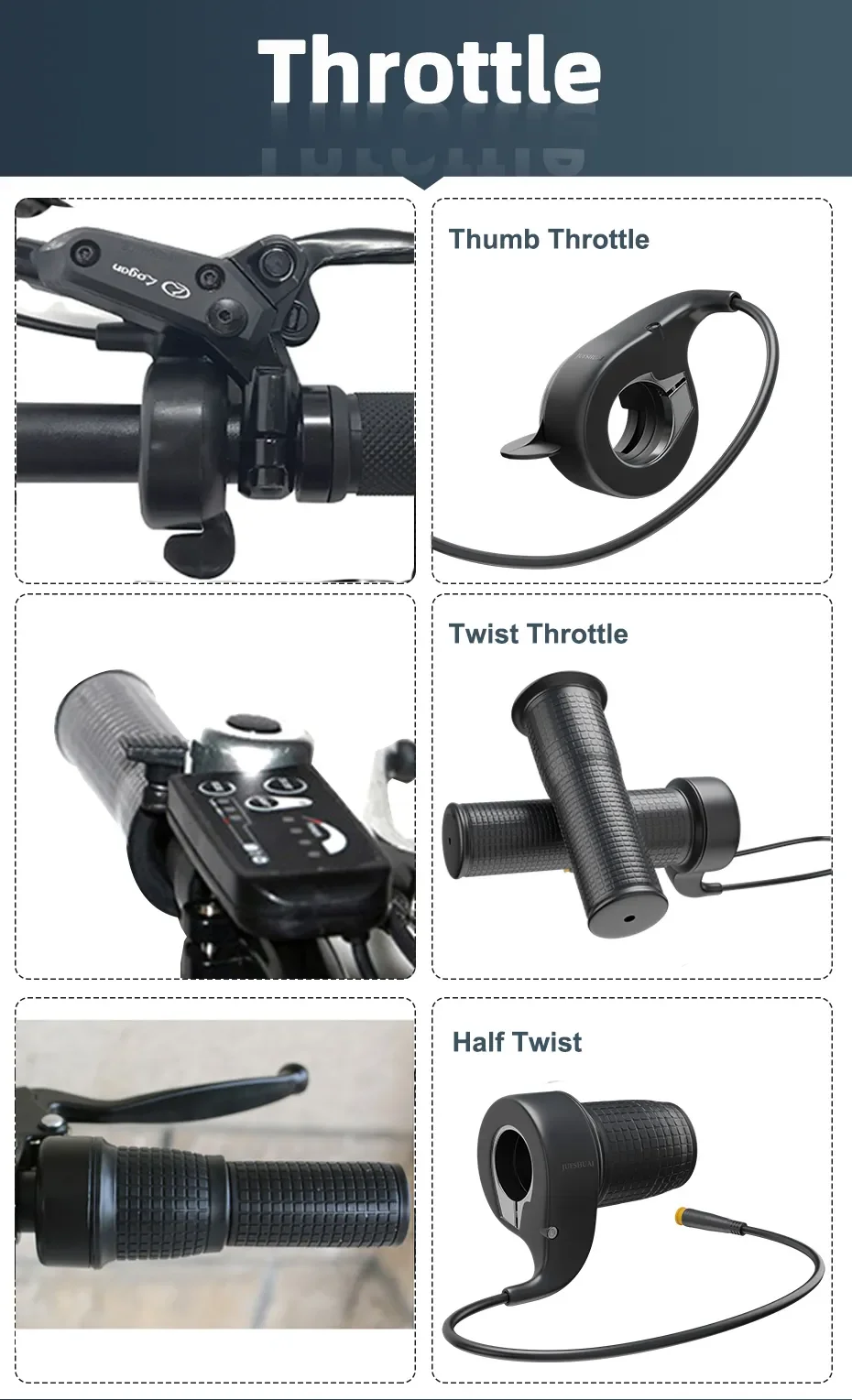

6. Throttles: Thumb Throttle /Twist Throttle /Half Throttle
